Boot cubby hole door - Trim clips

Post by Vanny »

After releasing the Ender5 3D printer article last month, a few people have contacted me about making parts.

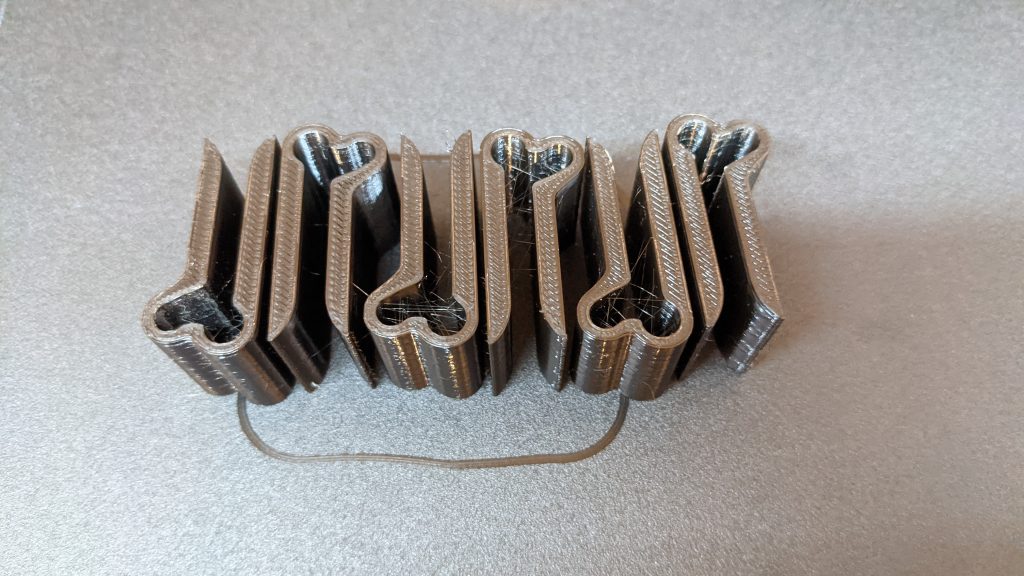

The first one I'm tackling is the BX boot door trim clip, requested by Mike E of this parish.
It seems these trim clips have a tendency to snap, so the design has been improved a bit.

read more here


https://bxproject.co.uk/blog/citroen-bx ... trim-clip/
User avatar
deltic
BXpert
Posts: 827
Joined: Tue Jan 25, 2011 10:48 pm
x 49

Re: Boot cubby hole door - Trim clips

Post by deltic »

Great stuff! One part that I think would be useful would be the spat (if that's the correct term) on the leading edge of the rear wings. I need both but only have a spare for the nearside.

I'd imagine getting them off will be a pain...
1991 BX GTi auto, grey, 137,000 miles (2015, 2017 & 2019 Citroen Classic Challenge veteran)
1991 BX GTi auto, grey, 92,000 miles (2022 Citroen Classic Challenge veteran)
2006 C4 VTR+ 2.0 Coupé, silver, 78,000 miles (RIP)
2016 Volvo V40 T2 R-Design Pro, blue, 24,000 miles
User avatar
white exec
BXpert
Posts: 681
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
x 70

Re: Boot cubby hole door - Trim clips

Post by white exec »

Vanny,
How large an item are you able to print?
Are you doing your own 3D scanning, or having it done?
I ask, because there are a couple plastic parts for XM that would be nice to do...

One more BX part could be the pair of front-corner 'hooks' for the rear parcel shelf.
Chris
User avatar
Vanny
Merseyside resident
Posts: 3581
Joined: Tue May 17, 2005 11:48 pm
Location: BXProject
My Cars: BX 16v Ph2 - Jazz
BX 16v Ph2 - XPO
x 79
Contact:

Re: Boot cubby hole door - Trim clips

Post by Vanny »

At the moment, 220 x 220 is the max, but this can make the parts brittle if they are directly copied. For something like the side spat, they would need a little redesign to be more rigid. At which point it can be quicker to just recast them in an epoxy resin.

In terms of scanning, I've tried a few different photogrametry methods, and always find I'm faster just designing the thing in CAD. I'm a long way of being a CAD engineer, but understanding how the original part was made/injected/cast does make redesigning for a printer much quicker.

A proper scanning system is £6k at the cheap end, £20k at the steep end, but you can pretty much create a business from a tool. The issue with scanning is it usually gives you a surface or mech, but not a CAD drawing. The cloud data from a scanner is usually an utter mess and needs hours of cleaning.

As for the hooks on the parcel shelf, I remade mine in steel and some 2mm galve plate. That won't fail in a hurry!
