Front bumper sag

Post by Mike Holdstock »

Any hints about what to do with the ubiqutous front bumper sag i.e. that the rear (wheelhouse) edge of the front bumper is just not high enough/filling the gap it should fill? I know there are only 6 connectors to get it off, but maybe someone has solved this one already. Sorry if I am raising a hoary old one but I am new to the site and haven't found the search function yet.
Mike, Karlstad, Sweden lhd 4706 14RE

User avatar
Tim Leech
Over 2k
Posts: 15367
Joined: Tue Apr 15, 2008 11:12 am
Location: Burton on Trent
My Cars: 1963 VW BEETLE 1200 KGJ413A
1979 Rover SD1 3.5 V8-S TSL 982
1980 Morris Marina 1.7HL DBV468W
1985 CITROEN BX 19DTR C943DYA (again)
1985 CITROEN BX 19GT C1TBX
1991 CITROEN BX 19TZI AUTO A/C BXi 19
1994 CITROEN XANTIA 1.8 SXi M908HRY
x 108

Post by Tim Leech »

Mike it sounds as if your bumper has come off its wing mountings, you need to undo the 6 torx screws on the bumper, 3 at the top and 3 at the bottom.

Slide the bumper forward, there should be a plastic square shaped locater that is attached to inner side of the bumper (one each side) with a square lug on it sticing out, these should locate into a hole on each wing which is normally hidde from view, line these up (get someone to help you) and refit the bumper and hopefully it should sit level!.
1963 VW BEETLE 1200
1985 BX 19GT Mk1
1985 BX 19 DTR Mk1
1991 BX 19TZI Auto A/C
1994 Xantia 1.8i SX
1972 Morris Marina 1.8 SDL
1979 Rover SD1 V8-S
1980 Morris Marina 1.7 HL
2003 Rover 25 1.6i XL 5 DR

User avatar
Vanny
Merseyside resident
Merseyside resident
Posts: 3482
Joined: Tue May 17, 2005 11:48 pm
Location: BXProject
My Cars: BX 16v Ph2
x 29

Post by Vanny »

or, pull it forward (in direction of normal travel of the car) a little, push up, in and back. Saves undoing the screws and can be done rather quickly!

User avatar
Tim Leech
Over 2k
Posts: 15367
Joined: Tue Apr 15, 2008 11:12 am
Location: Burton on Trent
My Cars: 1963 VW BEETLE 1200 KGJ413A
1979 Rover SD1 3.5 V8-S TSL 982
1980 Morris Marina 1.7HL DBV468W
1985 CITROEN BX 19DTR C943DYA (again)
1985 CITROEN BX 19GT C1TBX
1991 CITROEN BX 19TZI AUTO A/C BXi 19
1994 CITROEN XANTIA 1.8 SXi M908HRY
x 108

Post by Tim Leech »

Vanny wrote:or, pull it forward (in direction of normal travel of the car) a little, push up, in and back. Saves undoing the screws and can be done rather quickly!
Ive always found to get them far enough forward you have to undo them, which makes the job a whole lot easier.
1963 VW BEETLE 1200
1985 BX 19GT Mk1
1985 BX 19 DTR Mk1
1991 BX 19TZI Auto A/C
1994 Xantia 1.8i SX
1972 Morris Marina 1.8 SDL
1979 Rover SD1 V8-S
1980 Morris Marina 1.7 HL
2003 Rover 25 1.6i XL 5 DR

User avatar
Vanny
Merseyside resident
Merseyside resident
Posts: 3482
Joined: Tue May 17, 2005 11:48 pm
Location: BXProject
My Cars: BX 16v Ph2
x 29

Post by Vanny »

I've never found requirement to undo them because i'm strong, being strong makes most jobs on an old car easier!

Mike Holdstock
Confirmed BX'er
Posts: 68
Joined: Sat Jul 25, 2009 10:12 pm
Location: Karlstad, Sweden

Thanks!

Post by Mike Holdstock »

Vanny and Roverman (in no particular order9
Thanks for your generous advice. I'll find out how strong I am this evening when I get down to it.

Two more questions to enquire into yopur mental strength:
I notice that there is some trunking lying on the top edge (behind some clips which are a part of the bumper moulding) which carry (amongst other things) power supply to the fan. Does this have to be pulled out of the way or, in your experience, is there enough loose on this cable/trunk to let it stay in place/it will follow when you dismount the bumper?
Also - last one - any experience of how to handle the pipe from the headlamp washer tank (situated under and in front of the LHM reservoir) to the washer outlets on the balck lumps on the bumper?
(Or is this a purtely Scaninavian modification?).

Mike

User avatar
Tim Leech
Over 2k
Posts: 15367
Joined: Tue Apr 15, 2008 11:12 am
Location: Burton on Trent
My Cars: 1963 VW BEETLE 1200 KGJ413A
1979 Rover SD1 3.5 V8-S TSL 982
1980 Morris Marina 1.7HL DBV468W
1985 CITROEN BX 19DTR C943DYA (again)
1985 CITROEN BX 19GT C1TBX
1991 CITROEN BX 19TZI AUTO A/C BXi 19
1994 CITROEN XANTIA 1.8 SXi M908HRY
x 108

Post by Tim Leech »

There should be enough "slack" on there mike to allow you to move it forward enough, you dont need to remove it completely.
Last edited by Tim Leech on Wed Jul 29, 2009 10:16 pm, edited 1 time in total.
1963 VW BEETLE 1200
1985 BX 19GT Mk1
1985 BX 19 DTR Mk1
1991 BX 19TZI Auto A/C
1994 Xantia 1.8i SX
1972 Morris Marina 1.8 SDL
1979 Rover SD1 V8-S
1980 Morris Marina 1.7 HL
2003 Rover 25 1.6i XL 5 DR

RxBX
Over 2k
Posts: 2241
Joined: Wed Jan 28, 2009 11:51 am
Location: DERBYSHIRE

Re: Thanks!

Post by RxBX »

Welcome Mike !
Mike Holdstock wrote:Also - last one - any experience of how to handle the pipe from the headlamp washer tank (situated under and in front of the LHM reservoir) to the washer outlets on the back lumps on the bumper?
(Or is this a purely Scandinavian modification?).
Mike
Mike that it correct for the Headlamp wash it is not a standard fitment for the UK Market !
But there is a member on the Forum that does have them fitted to there BX :D :-


As already stated by 'Vanny' I'd normally do it the same way for speed and ease !
Especially with all the extra feed pipes etc which go to the headlamp wash I would NOT start removing the whole bumper as you may able just to feel where the bracket/ mounts are fitted.
However if you can't just clip the bumper back into place it may be easier just to remove the inner wheel arch liner !
This is provided the inner wing mounting bolt on the wing adjacent to the top trailing edge of the bumper is not rusted/seized up which supports the liner at that point !
With the wheel arch liner removed this should then enable you to see and access the side square bumper mountings (Item 6 in the parts listing/catalog below) for easier alignment/re-attachment of the bumper which in turn is attached to inner wing/arch surface .
Make sure the bracket is correctly fitted in the mounting slot on the body work of the car and locked back into the correct position first.
Then make sure the clip/tangs are correctly aligned with the moulded fastening/edges on the inside of the bumper and give the bumper a hard push towards the mounting brackets to click it into place !
After re-mounting the bumper to the brackets refit the wheel arch liner to the vehicle.



Image/courtesy of 'DLM' from THIS thread, I hope this is of help Mike.

Mike Holdstock
Confirmed BX'er
Posts: 68
Joined: Sat Jul 25, 2009 10:12 pm
Location: Karlstad, Sweden

more bumper sag

Post by Mike Holdstock »

RxBX
Thanks - and my access point did become via the wheel arch liner. Things are looking a lot better now, and I also got to inspect the relatively little rust of ages in there, quite encouraging.
The clip accessed via the wheel arch liner the guys were referring to required no small amount of manipulation - there was no way it would just click in.

The top left bumper mount screw has been subjected to some abuse - bit os jagged metal and the plastic screw seating replaced with a clip for the screw to anchor into - so there may have been a minopr prang which has resulted in a faulty alignment somewhere. Tomorrow and more light I will have a go at the left wheel arch

You guessed right about the headlamp wash unit, my two are just as the illustration you sent. I haven't seen any Swedish units without these. This type of equipment was demanded in Sw from the lat 70's - I remember seeing an amazing solution that was created for a Morris something I had here then.

I tried the original solution - undo the six screws and pull it out, then realign, but came to the conclusion that either I am very weak or there was some other factor. The other factor could be 4 really man-size "locked metal clips" which appear to be holding the plastic bumper to the metal bar which extends across the front (of the fan etc). These 4 clips are visible from the outsideIn front of the car on the top level of the bumper skirt grill. Is this something that appears on the UK models too or is it something (my theory) that could have been demanded by the same Swedish registration authorities that demanded the washers - and as a way of firming up the bumper washer mounting?

Maybe i can tap your expertise since we are under the front wheel arches. Tom Sheppard has posted a great article "Grumpy front struts, easy cure" on the DIY section of this site, but I can not for the life of me see the two rubber pipes he refers to in "Fitted to the side of the strut are two rubber pipes. remove these, collapse the suspension to its lowest setting and place the ....." where are these pipes? In the engine compartment at the top or am I misinterpretting "strut"?

Many thanks to all

Mike in Sweden
OWNS a BX19i 1990 tri with only 110k km on the clock and no rust
OWNS a life-threatened BX16i and delighted with it (but poor relationship with test station)
HAS HAD 89 BX14iRE (dead)
HAS HAD 88 BX19GtI (dead)
HAD 89 BX14RE which was still motoring very well at 280.000km when there was too much rust (gone)
HAD about 5 GS (first 1978) in the 70's, 80's and 90's, loved them, would dearly have one again.
HAD a DS Break - Succumbed to the rust of ages..

Mike Holdstock
Confirmed BX'er
Posts: 68
Joined: Sat Jul 25, 2009 10:12 pm
Location: Karlstad, Sweden

Post by Mike Holdstock »

BxRX
On closer examination of the diagram/parts list I think that the 4 mansize clips I referred to could be item 7 and 9.

So I will maybe just have to accept that I'm not that strong any more ;-)

Mike
OWNS a BX19i 1990 tri with only 110k km on the clock and no rust
OWNS a life-threatened BX16i and delighted with it (but poor relationship with test station)
HAS HAD 89 BX14iRE (dead)
HAS HAD 88 BX19GtI (dead)
HAD 89 BX14RE which was still motoring very well at 280.000km when there was too much rust (gone)
HAD about 5 GS (first 1978) in the 70's, 80's and 90's, loved them, would dearly have one again.
HAD a DS Break - Succumbed to the rust of ages..

User avatar
MULLEY
Over 2k
Posts: 8406
Joined: Thu Jun 22, 2006 11:10 pm
Location: Derbyshire
x 8

Post by MULLEY »

The strut is the vertical cylinder that runs from inside the engine bay where the sphere is attached, it runs through a hole into the wheel arch.

If you look in the wheel arch, you cant miss a dirty great big metal cylinder, thats the strut. On the strut are 2 rubber pipes that are attached via a clip towards the bottom of the strut which isnt veiwable when looking at it directly. If you peer around the strut, you will see the 2 rubber pipes connected upto some fixed metal pipes. The rubber pipes can be gently eased off the metal one's (they'll remain attached to the strut), these are then placed in a container of lhm where it then sucks up & spits out the lhm when raising the height of the car. Dont forget to secure the container of lhm to avoid it spilling everywhere & dont overfill either. Hope that explains it?
2002 C5 2.0 HDI Estate - Jasmine - Now SORN
2011 Mini Cooper D Clubman - SOLD
2016 Mercedes A180D Sport - Auto refinement
1992 TZD Turbo - Bluebell - My daily
1991 Gti 16V - Blaze - crash damaged, will get repaired.
1990 Gti 8Valve SOLD - looks like it's been scrapped
2002 Mini Cooper S - SOLD - i miss this car
1992 TXD - Scrapped in March 2014
1988 CX 25 GTI Turbo2 - SORN
1996 - AX Memphis 1.5D - Dream - SORN

I'm not just a username, i'm also called Matthew.

Mike Holdstock
Confirmed BX'er
Posts: 68
Joined: Sat Jul 25, 2009 10:12 pm
Location: Karlstad, Sweden

Post by Mike Holdstock »

Mulley

many thanks for the transparent clarification :D

Mike in Sweden
OWNS a BX19i 1990 tri with only 110k km on the clock and no rust
OWNS a life-threatened BX16i and delighted with it (but poor relationship with test station)
HAS HAD 89 BX14iRE (dead)
HAS HAD 88 BX19GtI (dead)
HAD 89 BX14RE which was still motoring very well at 280.000km when there was too much rust (gone)
HAD about 5 GS (first 1978) in the 70's, 80's and 90's, loved them, would dearly have one again.
HAD a DS Break - Succumbed to the rust of ages..

RxBX
Over 2k
Posts: 2241
Joined: Wed Jan 28, 2009 11:51 am
Location: DERBYSHIRE

Post by RxBX »

Mike Holdstock wrote:RxBX
Maybe i can tap your expertise since we are under the front wheel arches. Tom Sheppard has posted a great article "Grumpy front struts, easy cure" on the DIY section of this site, but I can not for the life of me see the two rubber pipes he refers to in "Fitted to the side of the strut are two rubber pipes. remove these, collapse the suspension to its lowest setting and place the ....." where are these pipes? In the engine compartment at the top or am I misinterpreting "strut"?
Many thanks to all
Mike in Sweden
Mike !
Mulley has already explained about the LHM strut overflow/return and vent pipes !

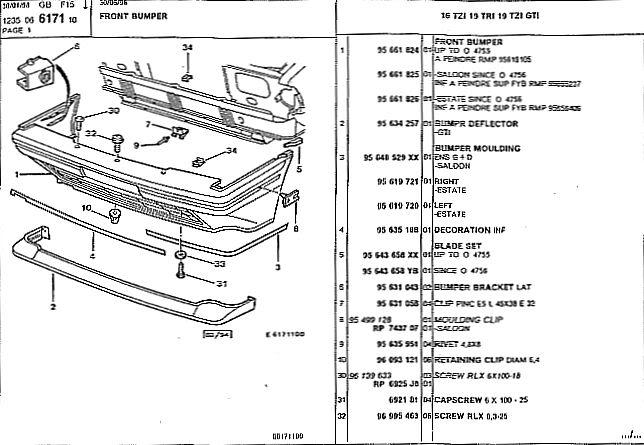

But if you open up THIS pdf file you will see exactly what your looking for on 'Thumbnail #1 item 9 :- as depicted in the lower left diagram and upper right hand diagram.
Also if you take a look at Thumbnail #15 and the lower right hand photo shot you will see these two rubber pipes (overflow/return pipe #5 and vent pipe #6, Also do-not cross connect these on re connecting !) which are attached to a common rubber connecting block.
Mk1 BX's were like this using two nylon ferrule connector's (one for each pipe) in my opinion this was a better design as when the pipes split it was a 5 minute job to replace the piece of rubber pipe from the nylon connector across to the metal connector pipes on the inner wing.

Unlike the all in one complete rubber moulded block and pipes which are pain to change as was fitted to the MK2 BX's :!:

:idea: So I converted my MK2 BX's set up to the MK1 design when the rubber pipes split/failed with age (Which was easy enough to do by leaving the old rubber block still attached to the strut/leg and then get a pair of nylon connector ferules to fit into the rubber block which I had from my MK1 BX's which I'd broken up for spares (You may need to trim any remnant of the rubber pipe above the block though) then just work out what the actual length of pipe from some random length of thick-wall/small-bore rubber pipe which is LHM suitable to re-connect up from the strut to fixed metal pipes on the inner wing !
The next time the pipe splits all that's needed is to keep some random rubber pipe sourced from the breakers yard off an Xantia or BX etc. say from some piping from the long lengths of return pipes etc. you can see going back to the LHM tank.

I have also used the rubber vacuum pipe from the carb to air filter box as fitted to Fix Or Repair Daily CVH engined Escort/Orions as these had a good length of straight thick-wall/small-bore rubber pipe fitted to them !

Both MK1 and MK2 BX's had the same stainless steel back plate and S/S strap which clamps the common rubber block to the strut (Which are fiddly to re-use with success so that's why the MK1 BX is a much better setup/design for these particular pipes) !

Also this LINK will give you an overview of the LHM fluid systems return/hose circuits (The overflow/return and vent pipes can be seen in the first diagram)

I hope this is of help to you Mike and maybe other forum members :D

Mike Holdstock
Confirmed BX'er
Posts: 68
Joined: Sat Jul 25, 2009 10:12 pm
Location: Karlstad, Sweden

Post by Mike Holdstock »

RxBX
Thank you for the detailed information which I know to be of use to me and I am sure will also be of use to others.
I am on a much faster learning curve than I had expected. Absorbing the input I have so far will keep me going for a good few days :D

Amongsth other things I note that you in the UK distinguish between BX Mk 1 and Mk 2. At which ORGA number did this changeover take place (my vehicles are 4333 (19th Sept 88) and 4706 (27th Sept 89)?
Is this Series 1/2 with ORGA break at 3522/July 1 1986 (or thereabouts), or something else?

Mike
OWNS a BX19i 1990 tri with only 110k km on the clock and no rust
OWNS a life-threatened BX16i and delighted with it (but poor relationship with test station)
HAS HAD 89 BX14iRE (dead)
HAS HAD 88 BX19GtI (dead)
HAD 89 BX14RE which was still motoring very well at 280.000km when there was too much rust (gone)
HAD about 5 GS (first 1978) in the 70's, 80's and 90's, loved them, would dearly have one again.
HAD a DS Break - Succumbed to the rust of ages..

User avatar
MULLEY
Over 2k
Posts: 8406
Joined: Thu Jun 22, 2006 11:10 pm
Location: Derbyshire
x 8

Post by MULLEY »

I'm unsure about the orga numbers, but the easiest way to distinguish between the mk1 & mk2 is visually. Looking at the side of the car, the MK1 front indicator will be orange & it is cut into the panel, whereas the MK2's are flushly fitted at the front & dont go into the panel & arent orange.

Inside the car, mk1's have the lego brick style dash with revolving drum, except the MK1 GT which doesnt (see indicators above).

Hope the above clears that up for you, remembering not to get that mixed up with Phase1 & Phase 2 Gti 16V's only.
2002 C5 2.0 HDI Estate - Jasmine - Now SORN
2011 Mini Cooper D Clubman - SOLD
2016 Mercedes A180D Sport - Auto refinement
1992 TZD Turbo - Bluebell - My daily
1991 Gti 16V - Blaze - crash damaged, will get repaired.
1990 Gti 8Valve SOLD - looks like it's been scrapped
2002 Mini Cooper S - SOLD - i miss this car
1992 TXD - Scrapped in March 2014
1988 CX 25 GTI Turbo2 - SORN
1996 - AX Memphis 1.5D - Dream - SORN

I'm not just a username, i'm also called Matthew.
